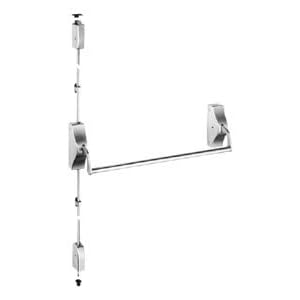

Yale 1510 Traditional Vertical Rod Exit Device Dec 5th 2012, 10:16 Category: Tools & Home Improvement Vendor: Part Number 1510Item DimensionsWeight20 Pounds Product Description : Designed for wide stile doors Handed, specify hand (field reversible) Positive action linkage on a deadlocking top pullman bolt Simultaneous direct pull bottom deadbolt When unlatched, device keeps both bolts retracted until door is shut Apllications: Pairs of doors, Double egress, Metal, wood or composite door materials Door Opening Width: -36 for 30" - 36" (76cm - 91cm) doors -48 for 36" - 48" (91cm - 122cm) doors Door Opening Height: Standard door height 7' (213cm), with the device centerline at 39-5/16" (100cm) from floor. Optional heights up to 8' (fire) and 10' (panic) available by using rod extensions. Door Thickness: 1-3/4" (44mm) standard Minimum Stile Width: 4-1/2" (114mm) Projection: 5-5/8" (143mm) active, 4-1/2" (114mm) depressed. Latchbolt: Top: 3/4" (19mm) throw, pullman-type with automatic deadlatching Bottom: 5/8" (16mm) throw deadbolt, held retracted during door swing Vertical Rods: 1/2" (13mm) O.D. tubular brass, bronze or stainless steel w
